​​​​Timpac Healthcare

TREATMENT ACTIVATION
POWER SUPPLY
POWER
DIMENSIONS
CATEGORY
WEIGHT
PROTECTION FUSES
SAFETY CLASS AND APPLIED PART TYPE
Technical specifications (PlasmaWave and PlasmaPeel)
TYPE
FREQUENCY
WAVE SHAPE TYPE
MAXIMUM POWER OUTPUT

OPERATING MODE

Control panel button and foot pedal
100÷240 Vac 50/60 Hz
160W (modalità operativa)
400 x 400 x 220 mm
Apparatus using radio frequency and electroporation
16 kg
2 x 2AF 250V
IBF

Plasma generation through ionization of atmospheric gases (virtual electrode)
87.8 kHz
Amplitude modulated sine wave Vpp=1800V max with open circuit
60 W
Continuous (with pedal pressed down)

SKIN REJUVENATION, “SOFT SURGERY” AND TRANSDERMAL DELIVERY.
Intraject is a medical device of the latest conception in which three technologies of proven clinical effectiveness are combined: Radiofrequency, Electroporation, Plasma energy. Intraject is composed of three generators that operate with different frequencies and pulses, controlled by a very sophisticated software.
The advantages of a combined action
PLASMAWAVE
VERSATILITY

The variability in frequency and voltage allows the same technology to be used for different results, from micro-ablation to diathermy.
NO-CONTACT TECHNOLOGY
Possibility to use the technology in the medical field for soft-freezing procedures in dermatology and cosmetic microsurgery.
MESOWAVE
REDUCTION IN PAIN PSYCHOSIS

The transmission of the active ingredients takes place through modulated currents using the principle of electroporation which, in the absence of needles, reduce the perception of pain.
REATER DELIVERY OF THE ACTIVE PRINCIPLES
The effectiveness of the electric pulse, with a continuous base, makes it possible to treat very large areas, reduce the amount of active ingredient by increasing its concentration and to have faster and longer lasting results.
Plasma energy
The energy produced in the form of Plasma (glow or flash) generates a temperature increase in the very first tissue layer, capable of generating a tissue vaporisation/sublimation.
Plasmawave®
It uses plasma energy to induce micro-sparks on the surface of the skin creating micro-ablation points, thus triggering a natural regeneration process.
Plasmapeel®
It is a fractional ablative skin resurfacing treatment designed to improve the texture, tone and radiance of the skin while restoring its elasticity.

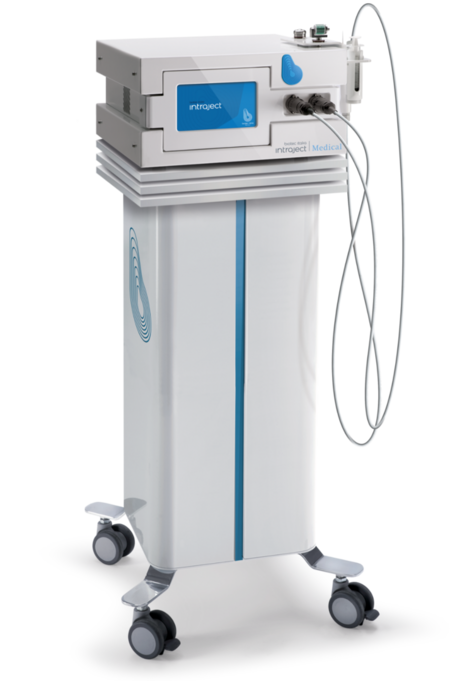

INTRAJECT

Skin Biostimulation and Biorevitalisation

General Technical Specifications:
