DSM IV - Skin Colormeter

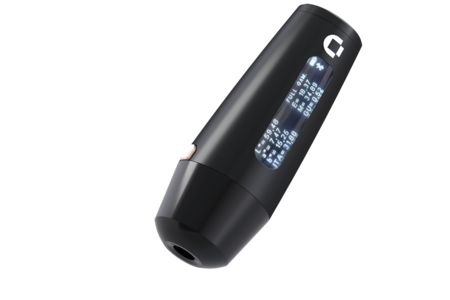

Colorimeter DSM-4
For accurate measurements of color, pigmentation and erythema

Be the expert with accurate skin color measurement
Gain more clients by demonstrating your expert knowledge with valid data. Deliver accurate and detailed color measurements with the Colorimeter DSM-4 - your most professionel quality tool for skin color assesment.

4 simultaneous skin color measurements with 1 instrument
The Colorimeter DSM-4 is based on the newest technology and provides you with accurate skin optimised measurements for percieved color, pigmentation, and erythema simultaneously and at the same location.

The colorimeter is able to detect extremely small color changes in the skin, and it is ideal for evaluation of skin eg. before and after laser treatments. The colorimeter is highly recognized in both research studies and in pharmaceutical and cosmetic efficacy testing. Now it is available in a highly updated version - the DSM-4 model.

The Colorimeter DSM-4 is equipped with advanced software with automatic classification of skin phototype (ITA) in 6 groups: very light, light, intermediate, tan, brown, and dark.

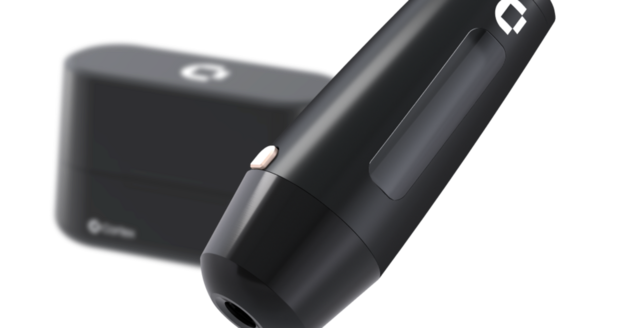

High quality working standards (white, zero, and gloss) ensure reliable skin color measurements over time. It has an intuitive and portable calibrator, which is built into the storage case.

The modern portable design of the Colorimeter DSM-4 and the integrated calibrator is perfect for working remote. The Colorimeter DSM-4 is delivered with software for Windows on USB flashdrive.

Specifications

  • 45°/0° Colorimeter with full visible spectrum color sensor
  • Color space: CIE XYZ, L*a*b*, L*C*h, sRGB
  • Color difference: ΔEab <2 and ΔE00 <1
  • 60° specular gloss (GU) measurement
  • Light source: D65 illuminant (CRI > 98)
  • Measurement aperture: 8 mm (50 mm2 area),
  • Measurement area: 4.2 mm when measuring a plane surface
  • Wireless data transfer
  • Special correction matrix optimised for skin
  • Portable calibrator
  • Software for Windows 10+11
  • Warranty: 1 year. Extended upgrade and warranty program available.
